CAD e70 Condenser Microphone
The e70 microphones are audio tested and inspected under the direction of CAD Professional Microphones, offering an exceptional level of value.

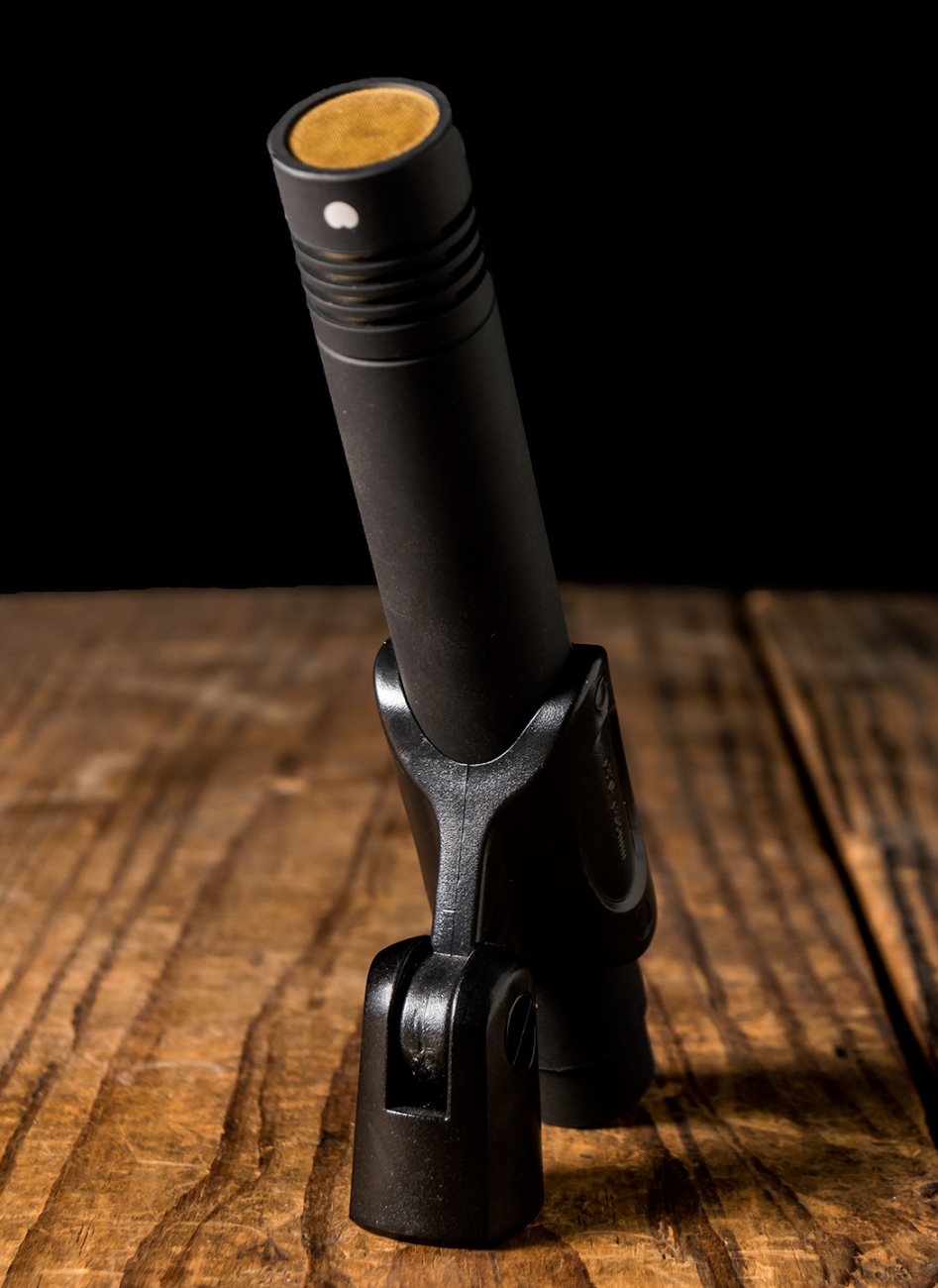

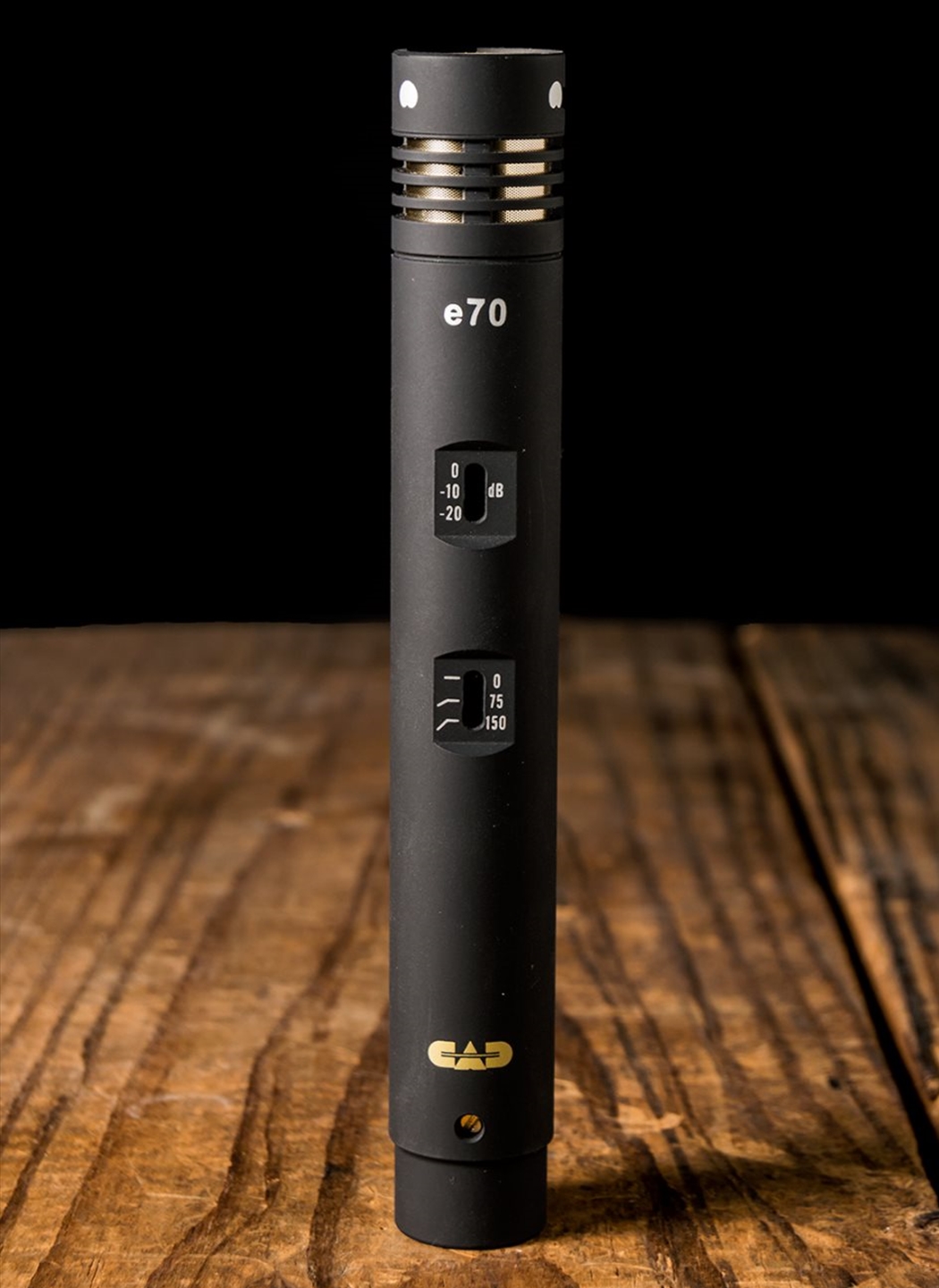

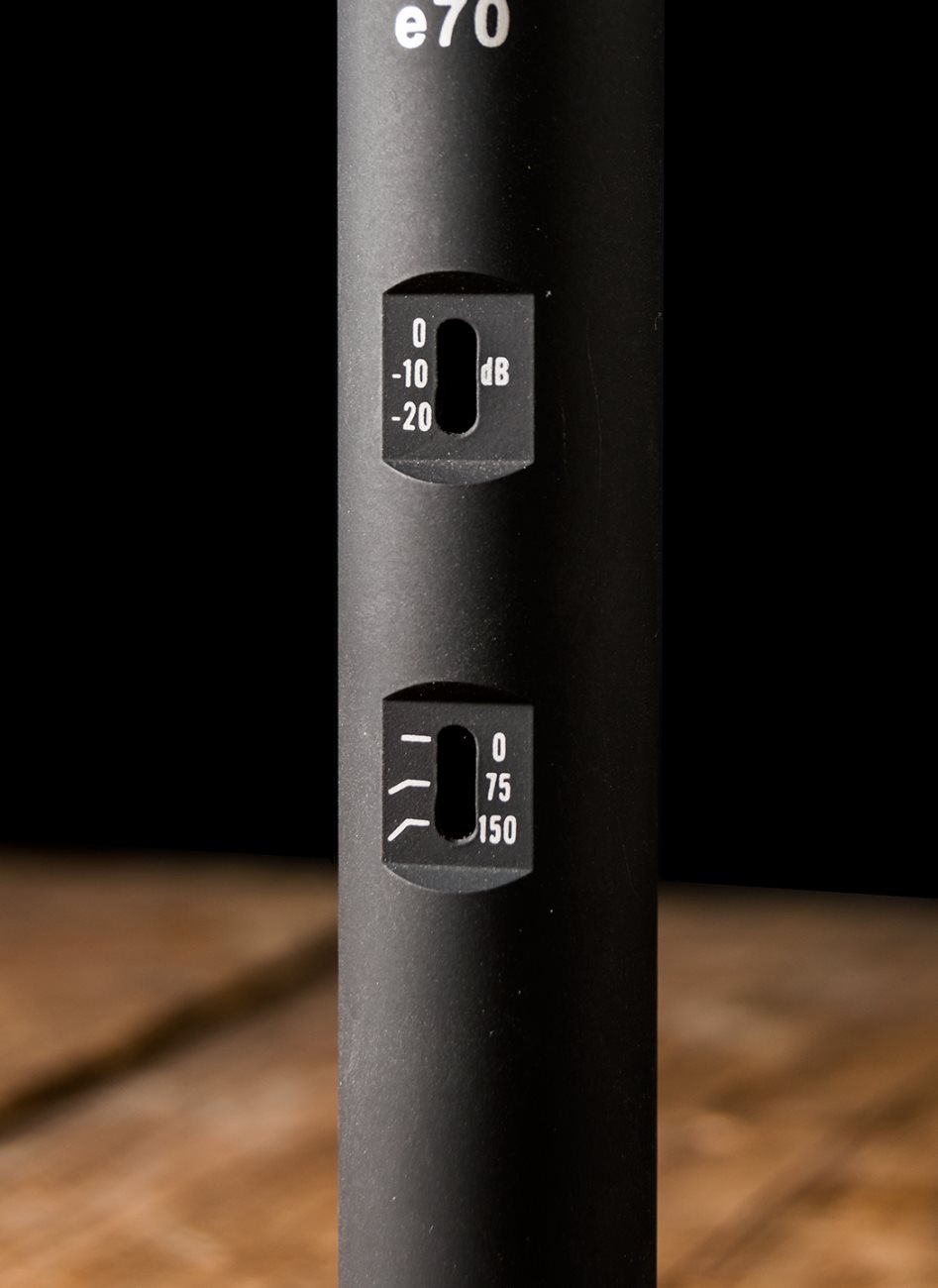

Packaged in a small, rugged metal housing, the equitek e70 condenser microphone provides transparent, accurate acoustic capture. The low mass 1/2” gold sputtered diaphragm makes the e70 the preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano. The transformerless design reduces low frequency distortion at high sound pressure levels. The 3 position hi-pass filter and 3 position pad provide the versatility required in demanding live sound and studio applications. The interchangeable capsules provide both cardioid and omnidirectional pickup patterns for greater flexibility. The e70’s accuracy, high SPL capability and size make it a valuable tool in the professional audio environment.
FEATURES:
-End address condenser with interchangeable capsules
-Frequency Response: 20Hz - 20KHz
-Impedance: 85 ohms
-Cardioid Sensitivity: -40dBV (10mV) @ 1 Pa
-Cardioid Self Noise: 23dB, A-weighted
-Cardioid Maximum SPL: 155dB, 20dB pad engaged
-Omnidirectional Sensitivity: -36dBV (16mV) @1 Pa
-Omnidirectional Self Noise: 19dB, A-weighted
-Omnidirectional Maximum SPL: 154dB, 20dB pad engaged
-Power Requirements: Phantom P48, 2mA
-Connector: Three pin XLR type
-Polarity: Inward pressure on the diaphragm produces positive voltage on pin 2
-Included Accessories: Shockmount, mic clip and windscreen
N Stuff SKU: |
E70 |
Manufacturer: |
CAD |
