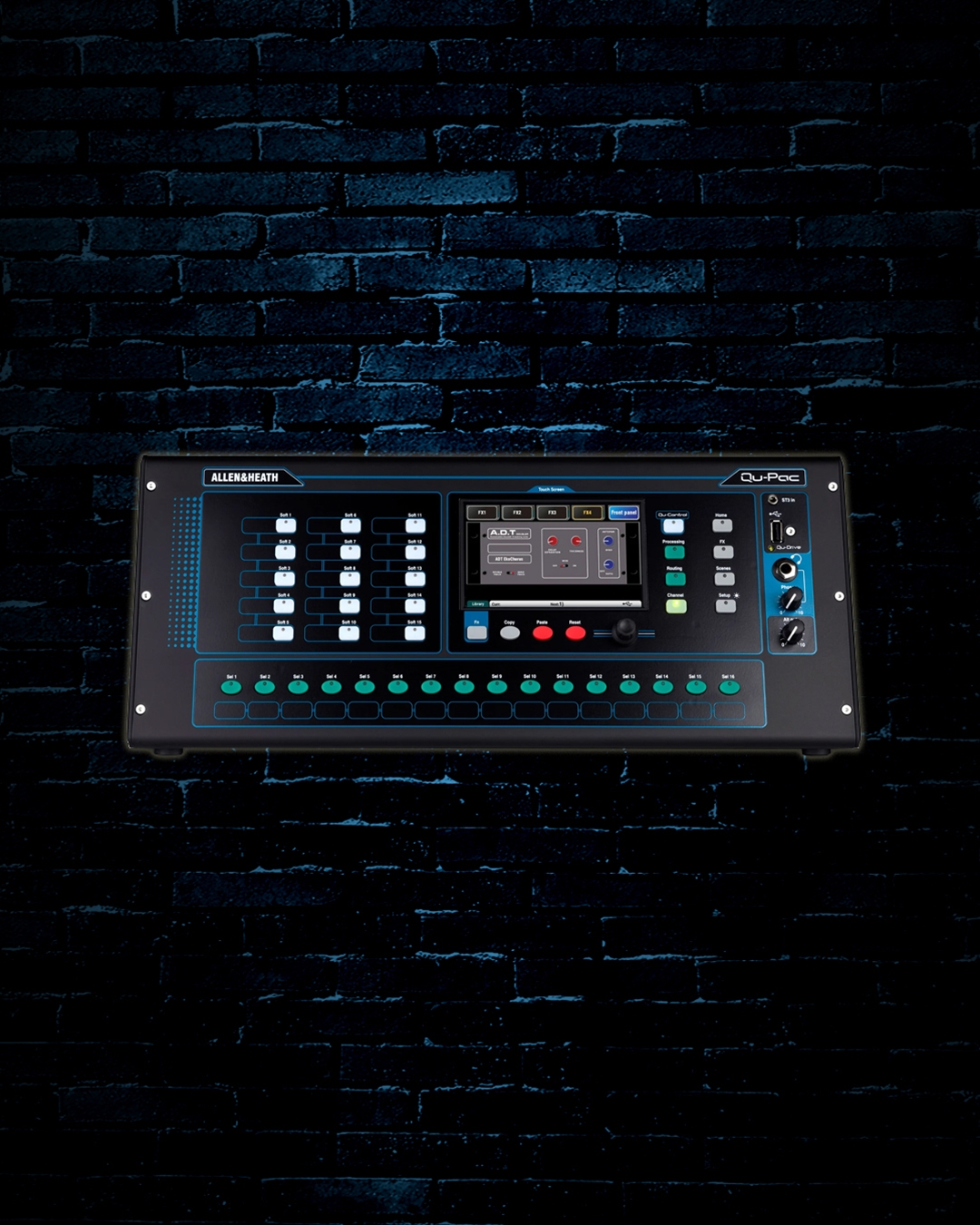

Allen and Heath Qu-Pac 32 Digital Mixer

Price: $1,999.99

PROMO PRICE: $1,799.99

Financing Available
LEARN MORE

FREE SHIPPING ON THIS ITEM

Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen.

Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format.

With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint. User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.

Qu-Pad:
Add the Qu-Pad iPad app to your Qu setup and you’re free to adjust the monitors on stage, roam around the venue whilst tweaking the PA, and then mix the show from the heart of the audience. Qu-Pad connects to the mixer over Wi-Fi and gives instant access to all live mixing parameters and settings.

Touch Control:
Qu-Pac’s 5 inch, 800 x 480 Touchscreen and its dedicated data encoder form the heart of the Qu interface, providing super-fast, easy access to all settings. The user-friendly interface has been designed with clarity in mind: dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more.

AnalogiQTM Preamps:
AnalogiQ total recall preamps feature zero crossing detection and an advanced padless 1dB step gain stage, closely allied to the DSP for optimal gain accuracy and audio transparency. The analog signal is captured by high class, low latency 24bit analog to digital converters matched to high quality 24bit digital to analog converters to deliver the required outputs.

dSNAKE:
Qu mixers are self-contained, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu’s dSNAKE port has you future-proofed, allowing connection to a combination of AR2412, AR84 or portable AB168 AudioRacks.

iLive FX:
Qu’s dynamics and FX algorithms are derived from the FX used in iLive pro touring series. Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units. All Qu models boast 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators, flangers and more.

USB Audio Streaming:
Qu’s built-in interface streams multitrack audio to your Mac or PC via a flexible patching system: all Input channels and the Main LR can be recorded at the same time, or you may choose to record something different such as FX returns or a pair of mixes.

Qu-Drive:
Forget soundcard drivers and software setup, Qu has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB hard drive. Capturing multitrack recordings of your shows has never been so easy. Mixes and FX returns can be recorded alongside channels, and multitrack audio can be played back to the mixer for virtual sound-checks.

ARMed to the Hilt:
Qu mixers are equipped with 5 cores of high efficiency ARM core processing, with dedicated ARM cores running the touchscreen display and surface, USB streaming, Qu-Drive multi-channel USB recording / playback and Ethernet. Between them the ARM cores provide state-of-the-art processing, working in parallel to deliver extensive control, instant-on operation, and lightning-fast response.

FEATURES:
-16 acclaimed AnaLOGIQTM recallable preamps
-16 on-board Mic / Line Inputs (XLR / TRS)
-Expandable up to 38 inputs via dSNAKETM
-3 Stereo Inputs (TRS)
-32 Mono + 3 Stereo Input Channels
-12 on-board Mix Outputs (XLR)
-4 Stereo Groups
-2 Stereo Matrix Outs
-AES Digital Out
-4 DCA Groups
-4 Mute Groups
-Qu-Pad iPad App for all live mixing control

N Stuff SKU:	QUPAC32
Manufacturer:	Allen & Heath
