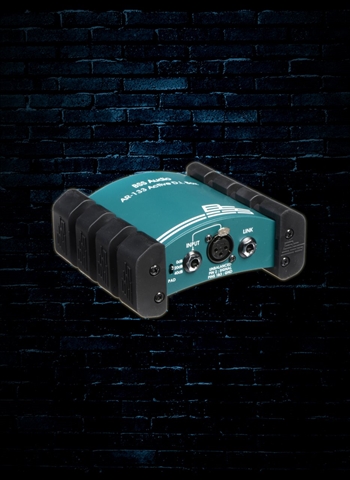

BSS AR133 Active Direct Box
ae00-7729
Retail Price: $195.00
 N'Stuff Price: $164.99
Quantity:



The AR-133 Active DI Box from BSS Audio uses an enhanced version of the same audio path as the AR-116, now regarded by many people as a reference standard. The sound quality is legendary, particularly on acoustic and bass guitars. Numerous applications can be satisfied by the AR-133. For example, as well as the traditional guitar use, the AR-133 can be used with keyboards, DJ consoles, amplifier outputs, and other electronic sources. An additional bonus is the ability to use the AR-133 as an active balancing device.



Input connectors are both 1/4" jack sockets and an XLR socket, the latter meaning that the AR-133 can be used to convert unbalanced signals to a balanced output on XLRs throughout. The arched case allows cables to run back underneath the unit from the end for neat cable management. Input attenuation is 0, -20 or -40dB, making the box suitable for instrument, line or amplifier levels on inputs. On the output side, a ground-lift switch is provided for quick solutions to ground-loop problems.



The BSS AR-133 includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use. This unit is housed in a rugged aluminum extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.



FEATURES:



  • Switchable input attenuation
  • 0dB for guitar-type pickups
  • -20dB for line level signals
  • -40dB for speaker feeds
  • Matches the level and impedance with unity gain without loading the source
  • Can drive signals up long cable lengths
  • Powered from console phantom power or internal battery
  • Automatic switchover to battery if phantom power fails
  • Parallel Link Jack output to feed amplifiers directly
  • Parallel XLR input for converting unbalanced outputs to balanced lines

SPECIFICATIONS:



INPUT SECTION



Input Impedance

  • 1MOhm (pad at 0dB)
  • 47kOhm (pad at -20dB)
  • 47kOhm (pad at -40dB)

Max Input Level

  • +9dBu (pad at 0dB)
  • +29dBu (pad at -20dB)
  • +49dBu (pad at -40dB)

Connectors

  • Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced)

Jack

  • Tip Hot (+ve)
  • Sleeve Ground

XLR

  • Pin 2 Hot (+ve)
  • Pin 1 & 3 Ground

Output Section

  • Output: Transformer Balanced
  • Max. Output Level: +8dBu into 600 ohms or greater
  • Connector: XLR3-32 or equivalent

System Performance

  • Distortion (THD): < 0.005% at 1kHz, 0dBu output
  • Noise: < -105dB unweighted, 22hz-22khz, rms*
  • Frequency Response: 30Hz to 20kHz, +0dB/-1dB

General

  • Main/Standby battery: 9 volt PP3 type, preferably alkaline.
  • Current drain: on phantom - less than 7.5mA, on battery - less than 2mA
  • Phantom Power: +20 volts DC to +48 volts DC
  • Weight: 650 gms, excluding batteries.
  • Overall Dimensions: 59 mm x 124 mm x 143 mm (2.3" x 4.9" x 5.6")
