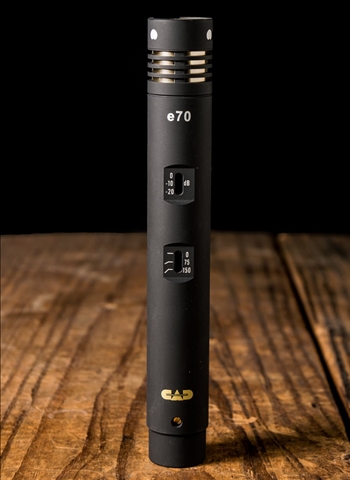

CAD e70 Modular Dual Capsule Condenser Microphone
ae00-5345
Retail Price: $179.00
 N'Stuff Price: $99.00
Quantity:



CAD e70 Modular Dual Capsule Condenser Microphone

Packaged in a small, rugged metal housing, the CAD equitek e70 condenser microphone provides transparent, accurate acoustic capture. The low mass 1/2 in. gold sputtered diaphragm makes the e70 the preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano. The transformerless design reduces low frequency distortion at high sound pressure levels. The 3-position hi-pass filter and 3-position pad provide the versatility required in demanding live sound and studio applications. The interchangeable capsules provide both cardioid and omnidirectional pickup patterns for greater flexibility. The e70's accuracy, high SPL capability and size make it a valuable tool in the professional audio environment.

FEATURES:

Preferred choice for high frequency sources rich in transients such as cymbal, hi-hat, strings, acoustic guitar, woodwinds and piano
3-position hi-pass filter and 3-position pad
High SPL capability and size make it a valuable tool in the professional audio environment

SPECIFICATIONS:

Operating Principle: End address condenser with interchangeable capsules
Frequency Response: 20Hz - 20kHz
Polar Pattern: Using Cardioid Capsule:
Sensitivity: -40dBV (10mV) @ 1 Pa
Self Noise : 23dB, A-weighted
Maximum SPL: 155dB, 20dB pad engaged
Polar Pattern: Using Omnidirectional Capsule:
Sensitivity: -36dBV (16mV) @ 1 Pa
Self Noise: 19dB, A-weighted
Maximum SPL: 154dB, 20dB pad engaged
Power Requirements: Phantom P48, 2Ma
Connector: 3-pin XLR type
Polarity: Inward pressure on the diaphragm produces positive voltage on pin 2
Dimensions: 7/8 in. (22 mm) x 6 1/8 in. (156 mm)
Net Weight: 7.6 oz. (216 grams)

INCLUDED ACCESSORIES: SHOCKMOUNT, MIC CLIP AND WINDSCREEN
