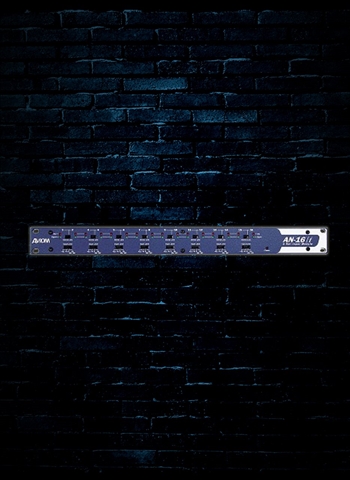

AVIOM AN16I 16 CH Input Module
ae00-5882
Retail Price: $1,210.00
 N'Stuff Price: $969.99
Quantity:



The Aviom AN-16/i Input Module converts 16 balanced line-level analog audio channels into uncompressed, full bandwidth 24-bit digital audio transmitted via A-Net. Placed at a front-of-house or monitor console, the AN-16/i can be used as a head-end for a Pro16 Monitor Mixing System. Used in conjunction with the AN-16/o Output Module, the AN-16/i can also be used in a digital snake as an input path for main return signals from front-of-house.

The AN-16/i provides 16 balanced line-level inputs into a Pro16 system. Audio is converted to digital (48kHz, 24 bits, no compression) and transmitted in real time via A-Net, up to 500 feet over a Cat-5e cable. A dedicated audio Thru is available for each input channel, allowing the AN-16/i to be seamlessly inserted into an existing audio signal path.

In most uses, audio from a console any combination of channel inserts, direct outs, submixes, auxes, or groups is connected to the input channels on the AN-16/i. The A-Net Out on the AN-16/i is connected to the A-Net In of a Pro16 Personal Mixer (such as the A-16II) or an A-Net Distributor.

The built-in A-Net Expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN-16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bi-directional configurations up to 32x32, 48x16, or 64x0.



FEATURES:



  • Sixteen balanced audio inputs (TRS connectors)
  • Sixteen balanced Thru connectors (TRS)
  • A-Net Out and A-Net Expansion digital audio network connections (Cat-5)
  • Stereo Link switches for each channel pair

SPECIFICATIONS:



  • Analog to Digital Conversion: 48kHz sample rate, 24 bit
  • Frequency Response: 4Hz-22kHz
  • A-Net Output: one Category 5 (RJ45 connector)
  • A-Net Expansion: one Category 5 (RJ45 connector)
  • Gain Switch: Four Position, -10dBv, 0dBu, +4dBu and +22dBu
  • Channel LED Indicators: Signal Present and Clip, per channel
  • Line Input Impedance: 48k ohms
  • Power: 18-24 VDC, 500mA
  • Dimensions: 19" wide x 6.7" deep x 1.75" high (1U)
  • Weight: 6.8 lbs.
